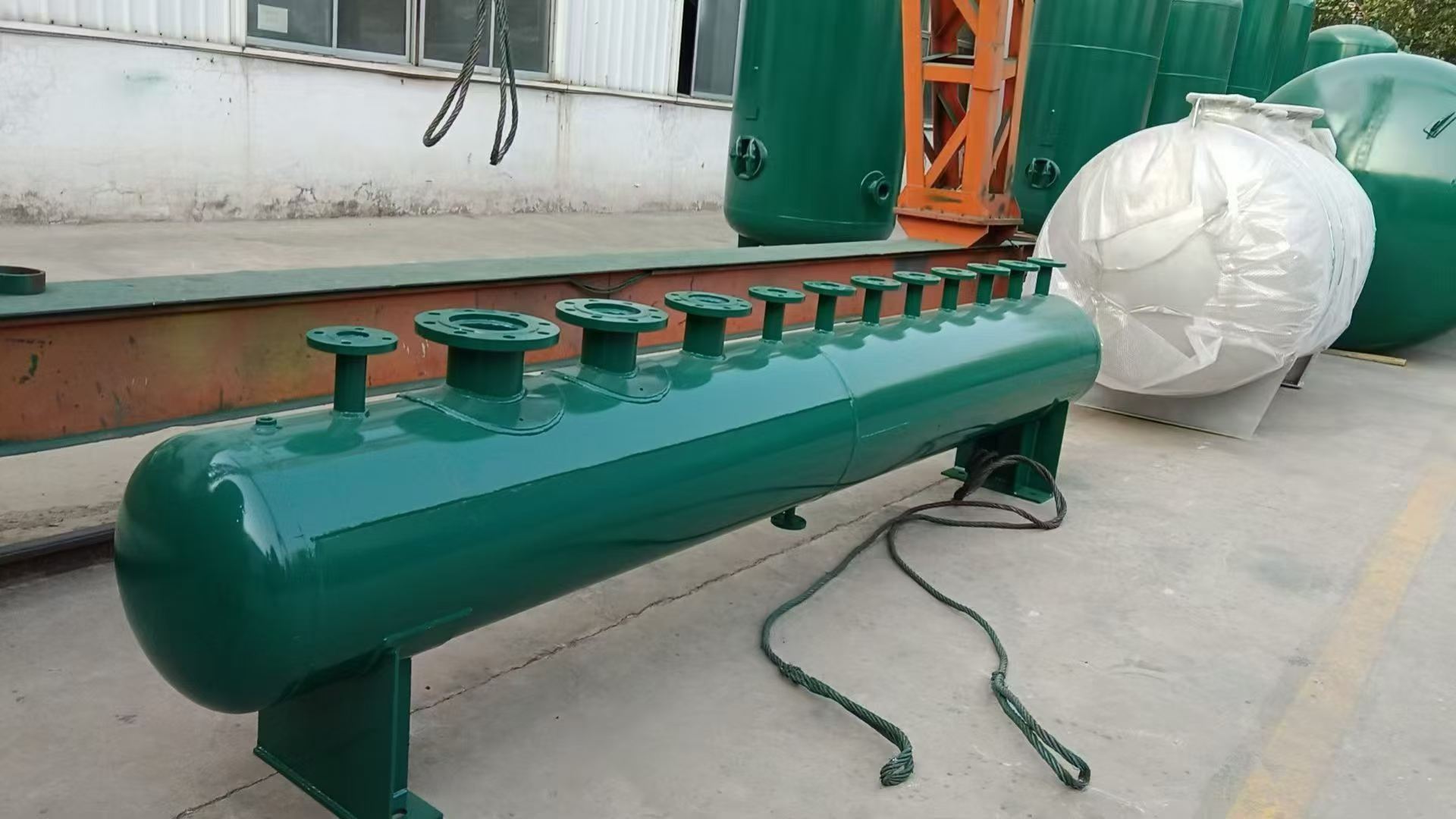

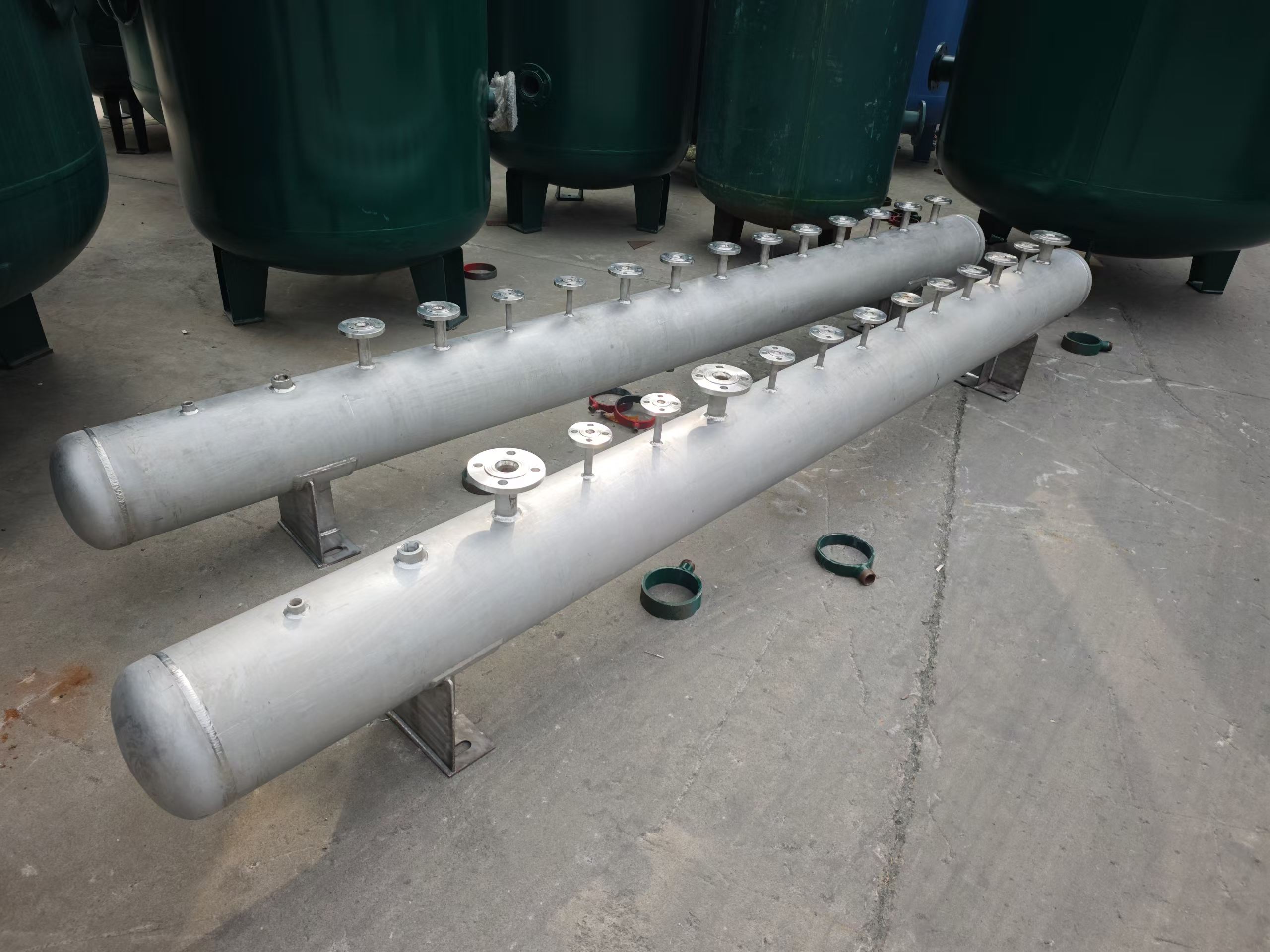

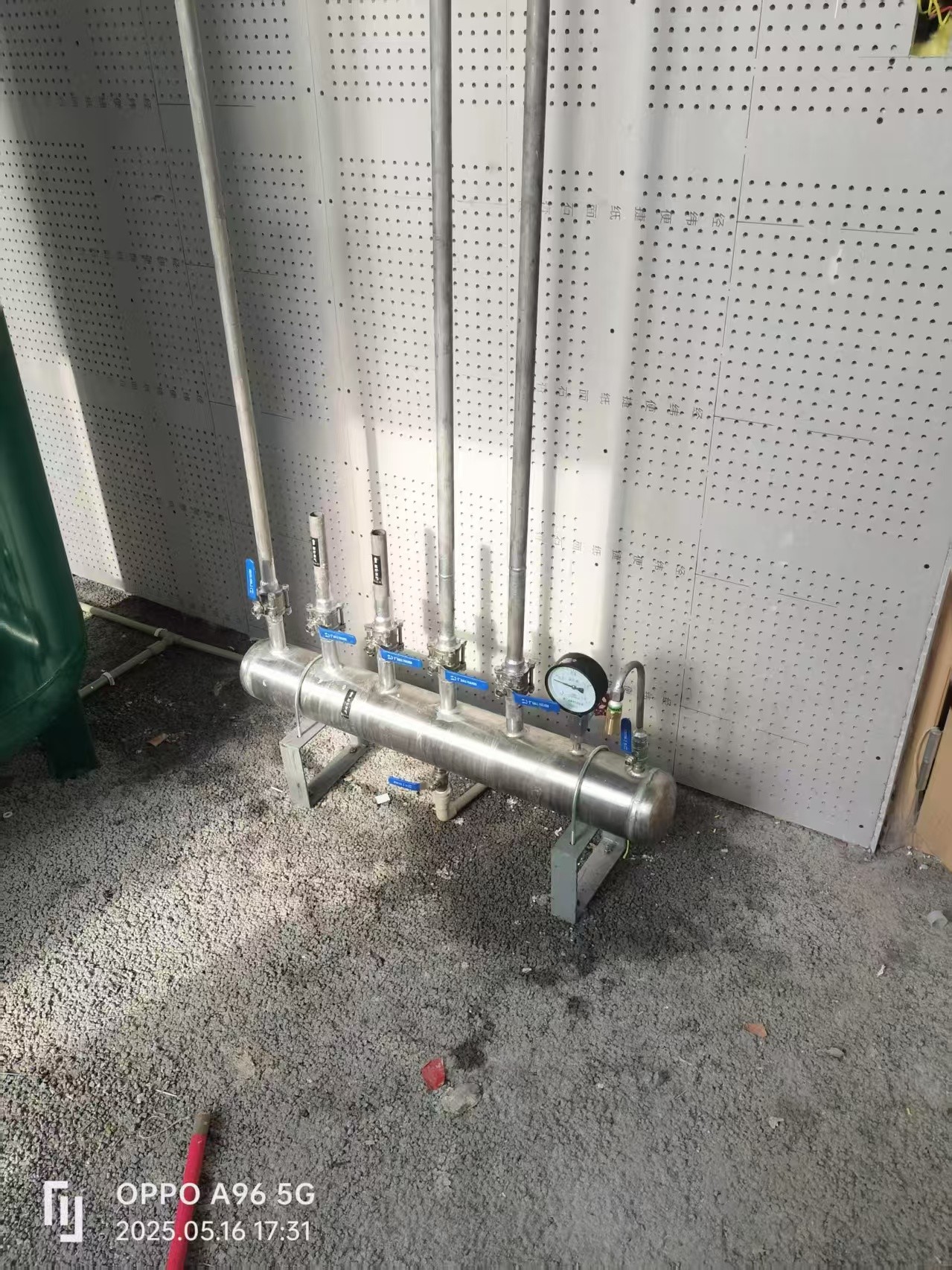

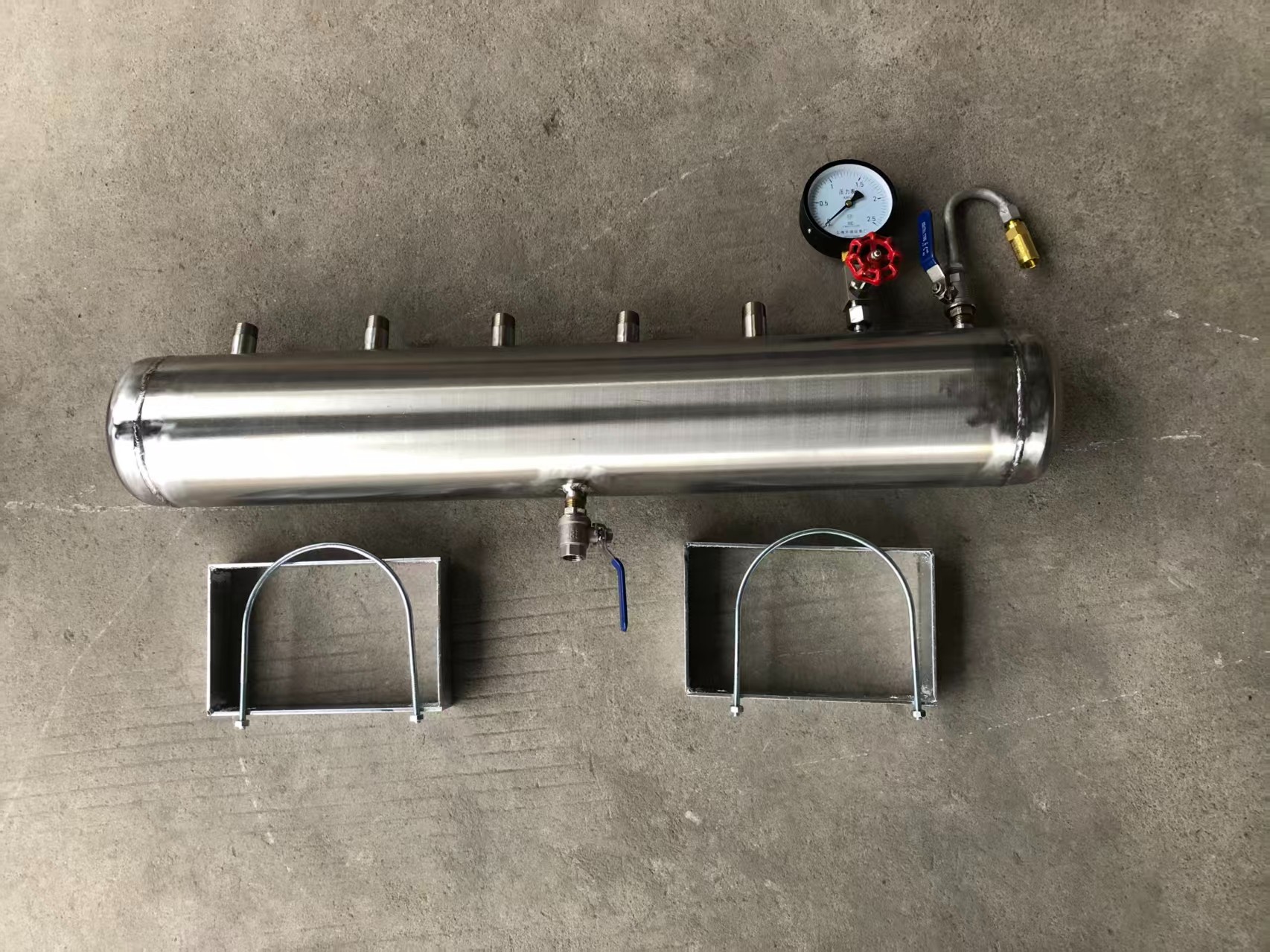

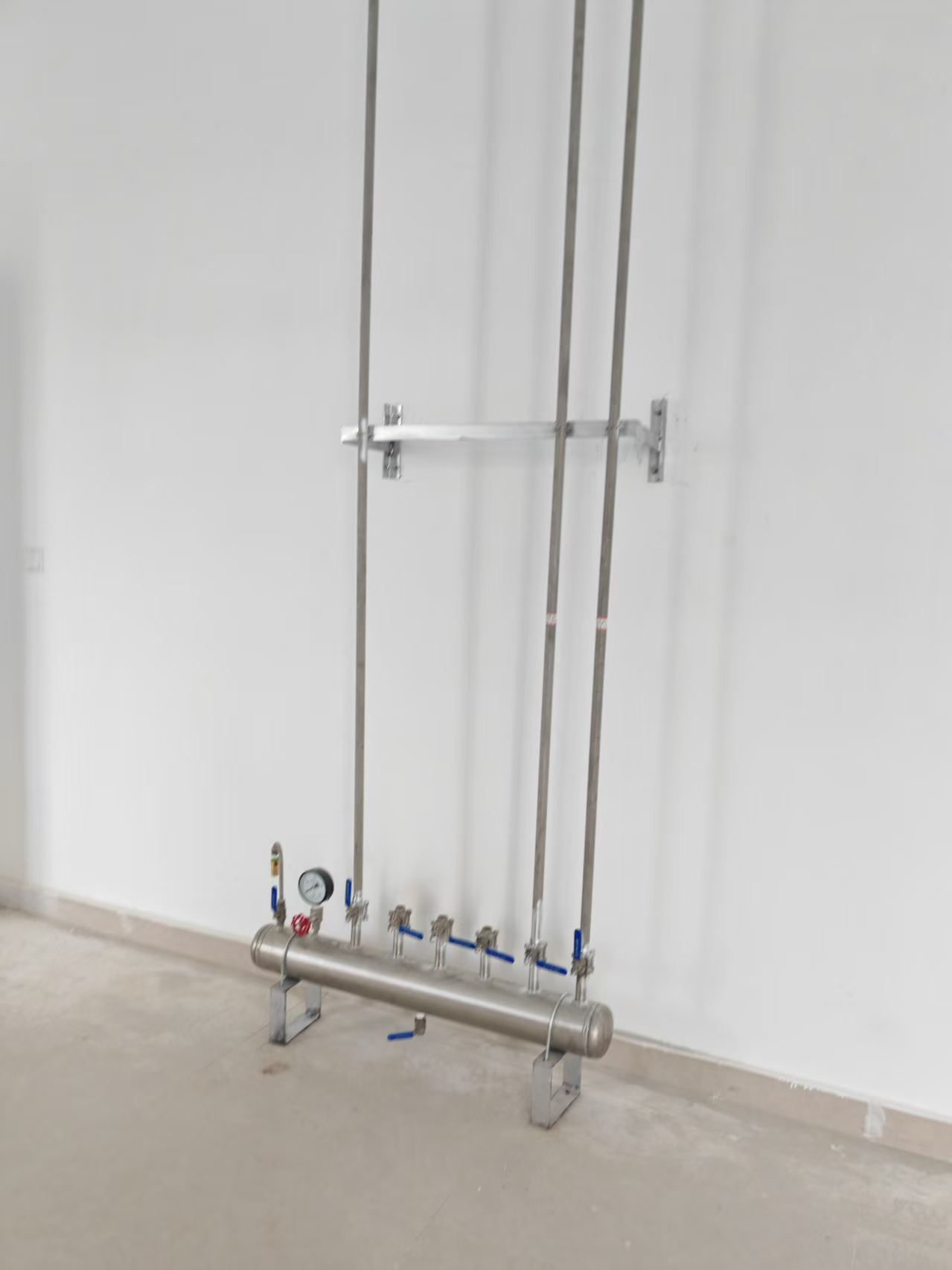

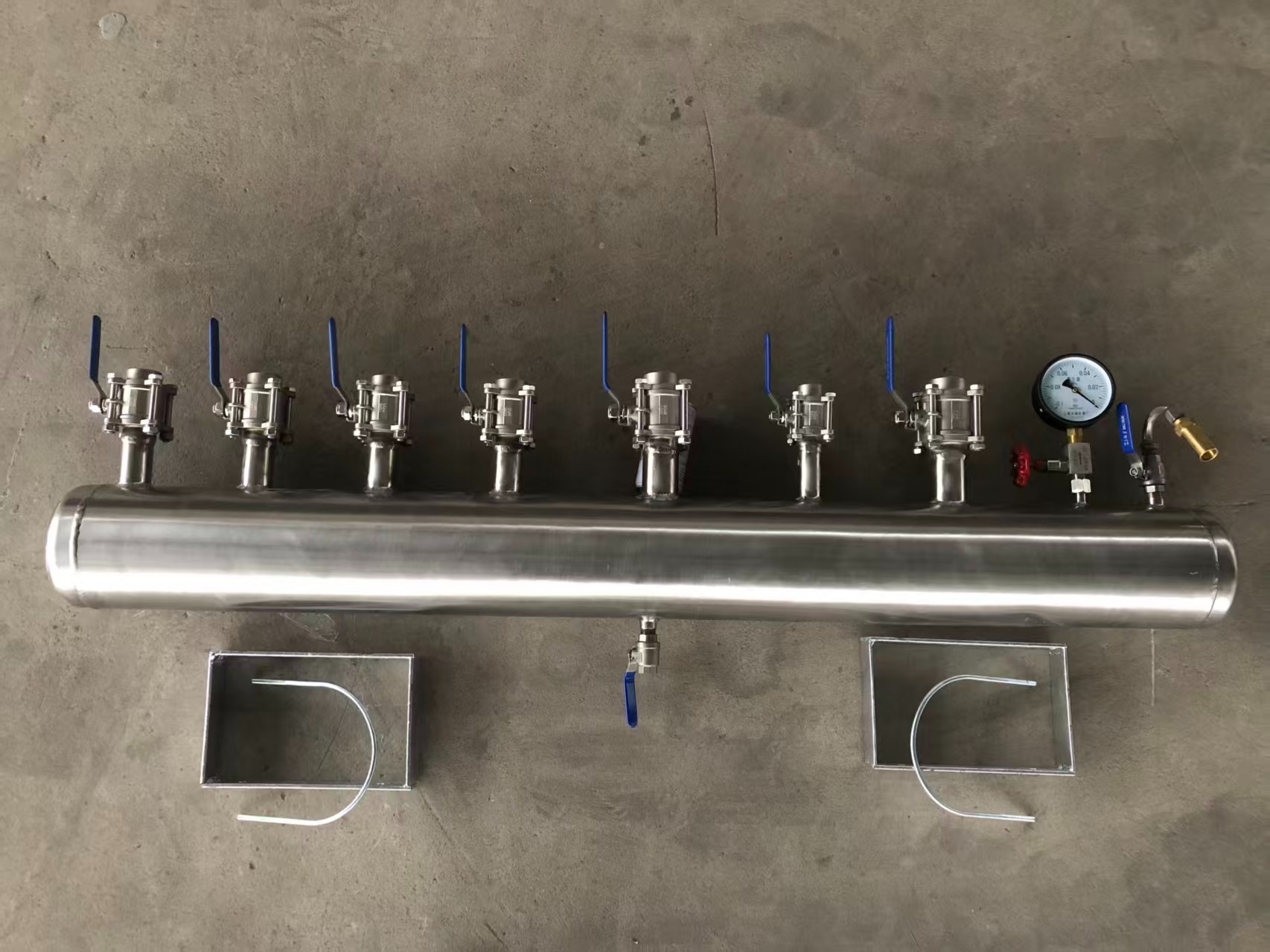

The vertical steam manifold is a boiler‑supporting pressure vessel integrally welded from carbon‑steel. It distributes, stabilizes and buffers steam pressure, evenly supplies multi‑channel gas and settles water‑vapor impurities. Delivered with valid certification after weld flaw‑detection inspection, it suits steam‑related working conditions such as factory heating, chemical processing and food steaming. Multiple flange ports are available with customizable port quantity and dimensions.

   Volume: 0.1–1m³；Design Pressure: 0.8–1.6MPa；Customizable SUS304 stainless‑steel or Q245R boiler‑special carbon‑steel material based on usage requirements; Vertical / horizontal supporting‑structure options; Multiple flange distribution ports; Standard‑configured safety valve, pressure gauge and drain valve; Full‑set pressure‑vessel inspection certificates.
